MT60 Series

The MT-60 Series Compound Biological Microscope is designed for precision, durability, and ease of use in laboratory environments. It features high-quality EWF10x/20 mm eyepieces, a Siedentopf binocular viewing head, and infinity-corrected Plan objectives (4x, 10x, 40x, 100x oil). The ergonomic rackless mechanical stage (228.6 × 140 mm) ensures smooth, accurate slide movement, while the height-adjustable Abbe condenser (N.A. 1.25) and coaxial coarse/fine focusing system with 2 µm precision provide superior control. A robust ball-bearing nosepiece, anti-fungus-treated optics, and integrated illumination filters guarantee exceptional image clarity and long-term reliability.

Powered by a 3 W NeoLED™ Köhler illumination system with auto-voltage sensing, the MT-60 Series offers consistent, bright light and energy efficiency. It includes Meiji Techno’s exclusive iCare sensor that automatically powers down the illumination when not in use, and the CSS (Cable Storage System) for clean, convenient cord management. This model is ideal for academic, clinical, and research laboratories seeking precision optics, intuitive operation, and dependable performance in a compact, professional design.

• EWF10x/20 mm Eyepieces
• Binocular Head for easy photo microscopy
• Quintuple Ball Bearing nosepiece
• Infinity Corrected Plan EPI 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil-immersion DIN objectives
• 44.0 mm unmounted Blue and Green Filter
• 44.8 mm filter holder
• 23.2 mm Inner Diameter Trinocular Tube
• 3 mm Allen key to connect Trinocular head
• 2.4 mm Allen key to rotate Trinocular Tube
• Special C” tooth wrench to increase tension knob control
• 228.6mm x 140 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
• Height adjustable Abbe condenser N.A. 1.25
• Coarse and fine height adjustment
• Diascopic intensity adjustable 3W NeoLED™ illumination with internal 85V-240V power supply
• Auto-Voltage Power Sensing Power Supply
• iCare sensor for energy saving
• CSS – Cable Storage System Cord Wrap
• Immersion oil for supplied 100X objective

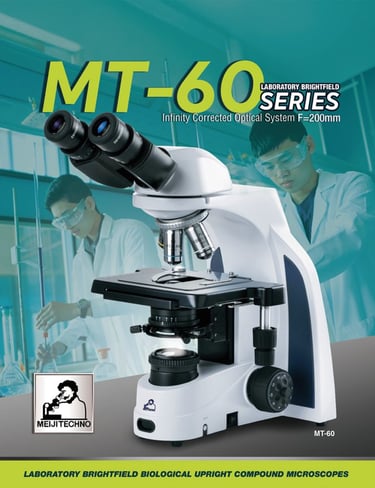

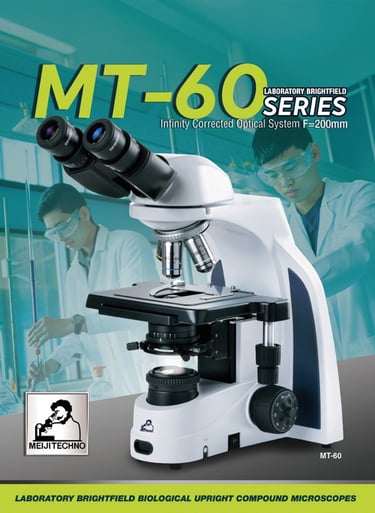

Click on the image to download the brochure
